Injection packer high pressure

Here you will find all the high-pressure packers you need! Our wide range offers you daysite packers, steel packers, aluminum packers, special packers and ramm lance systems for ground consolidation. Many packers are also optionally available with flat-head nipples or low-pressure nipples. We are also happy to manufacture special packers specifically for your requirements/needs.

Day site packer

Day site packer steel high pressure 10 x 110 mm

Diameter 10 mm, length 110 mm, rubber 25 mm, with pre-assembled M6 HD cone head nipple Item number: PA10110RV

Day site packer aluminum high pressure 10 x 100 mm

Diameter 10 mm, length 100 mm, rubber 20 mm, with integrated HD cone head nipple Item number: PA10100RV

Day site packer steel high pressure 13 x 110 mm

Diameter 13 mm, length 110 mm, rubber 25 mm, with pre-assembled M6 cone head nipple Item number: 13110RV

Day site packer aluminum high pressure 08 x 100 mm

Diameter 8 mm, length 100 mm, rubber 20 mm, with integrated HD cone head nipple Item number: PA08100RV

Day site packer steel high pressure with flat head nipple 10 x 110 mm

Diameter 10 mm, length 110 mm, rubber 25 mm, with separately enclosed flat head nipple M6 Item number: PA13110FKN

Day site packer steel high pressure 12 x 110 mm

Diameter 12 mm, length 110 mm, rubber 25 mm, with pre-assembled M6 cone head nipple Item number: PA12110RV

Day site packer steel high pressure with flat head nipple 13 x 110 mm

Diameter 13 mm, length 110 mm, rubber 25 mm, with separately enclosed flat head nipple M6 Item number: PA13110RV-FKN

Day site packer steel high pressure 10 x 120 mm

Diameter 10 mm, length 120 mm, rubber 25 mm, with pre-assembled M6 HD cone head nipple Item number: PA10120RV

Steel packer

Injection packer steel high pressure 8 x 75 mm

Diameter 8 mm, length 75 mm, rubber 25 mm, with pre-assembled HD cone head nipple M6 Item number: PA08075 *Image similar

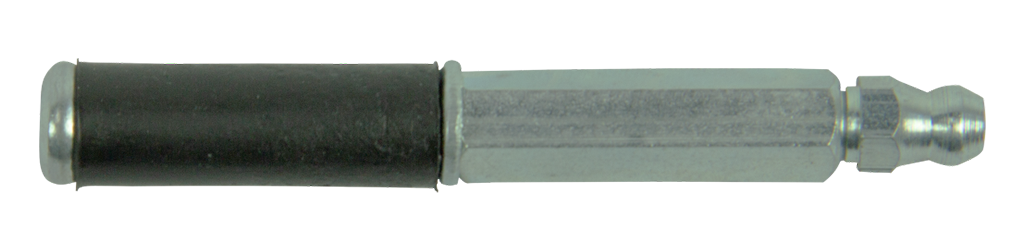

Injection packer steel high pressure 10 x 75 mm

Diameter 10 mm, length 75 mm, rubber 25 mm, with pre-assembled M6 HD cone head nipple Item number: PA10075

Injection packer steel high pressure 10 x 110 mm

Diameter 10 mm, length 110 mm, rubber 25 mm, with pre-assembled M6 HD cone head nipple Item number: PA10110 (Fig. similar)

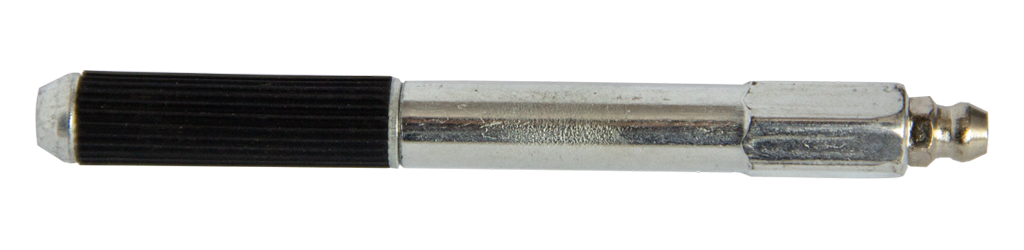

Injection packer steel high pressure 10 x 100 mm

Diameter 10 mm, length 100 mm, rubber 40 mm, with pre-mounted HP cone head nipple Item number: PA10100

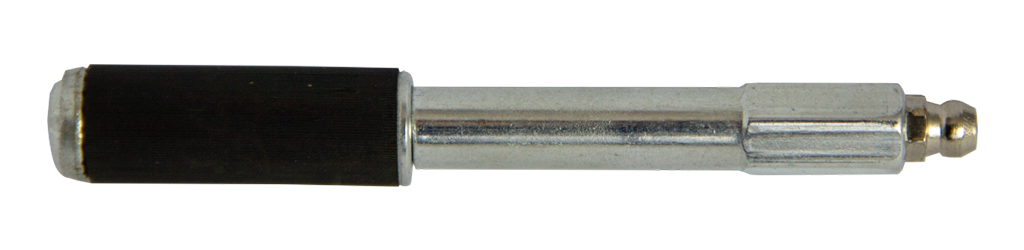

Injection packer steel high pressure 13 x 100 mm

Diameter 13 mm, length 100 mm, rubber 40 mm, with pre-mounted HP cone head nipple Item number: PA13100

Injection packer steel high pressure 13 x 400 mm

Diameter 13 mm, length 400 mm, rubber 25 mm, with pre-assembled HP cone head nipple, coupling sleeve Item number: PA13400 *Illustration exemplary

Injection packer steel high pressure 10 x 450 mm

Diameter 10 mm, length 450 mm, rubber 60 mm, with pre-assembled M6 HP cone head nipple, coupling sleeve Item number: PA10450 *Illustration exemplary

Injection packer steel high pressure 13 x 600 mm

Diameter 13 mm, length 600 mm, with pre-assembled M6 HP cone head nipple and coupling sleeve Item number: PA13600 *Illustration exemplary

Injection packer steel high pressure 15 x 200 mm

Diameter 15 mm, length 200 mm, with pre-assembled M6 HP cone head nipple and coupling sleeve Item number: PA15200 *Illustration exemplary

Injection packer steel high pressure 17 x 130 mm

Diameter 17 mm, length 130 mm, with pre-assembled M6 HP cone head nipple and coupling sleeve PA17130 *Illustration exemplary

Injection packer steel high pressure 18 x 170 mm

Diameter 18 mm, length 150 mm, with pre-assembled M6 HP cone head nipple and coupling sleeve Item number: PA18170 *Illustration exemplary

Injection packer steel high pressure 19 x 170 mm

Diameter 19 mm, length 170 mm, with pre-assembled M6 HP cone head nipple and coupling sleeve Item number: PA19170 *Illustration exemplary

Injection packer steel high pressure 21 x 130 mm

Diameter 21 mm, length 130 mm, with pre-assembled M6 HP cone head nipple and coupling sleeve Item number: PA21130 *Illustration exemplary

Injection packer steel high pressure 25 x 250 mm

Diameter 25 mm, length 250 mm, with pre-assembled M6 HP cone head nipple and coupling sleeve Item number: PA25250 *Illustration exemplary

Aluminum packer

Injection packer aluminum high pressure 10 x 110 mm

Diameter 10 mm, length 110 mm, with pre-assembled HD cone head nipple M6 and double rubber Item number: PA10110DUO

Injection packer aluminum high pressure 13 x 110 mm

Diameter 13 mm, length 110 mm, with pre-motivated HD cone head nipple M6 and double rubber Item number: PA13110DUO

Injection packer aluminum high pressure 10 x 100 mm

Diameter 10 mm, length 100 mm, with pre-assembled HD conical head nipple M6 and double rubber

Injection packer aluminum high pressure 13 x 100 mm

Diameter 13 mm, length 100 mm, with pre-assembled HD cone head nipple M6 and double rubber ( Eco-Version) Item number: PA13100DUO-ECO

Special packers and ram lances

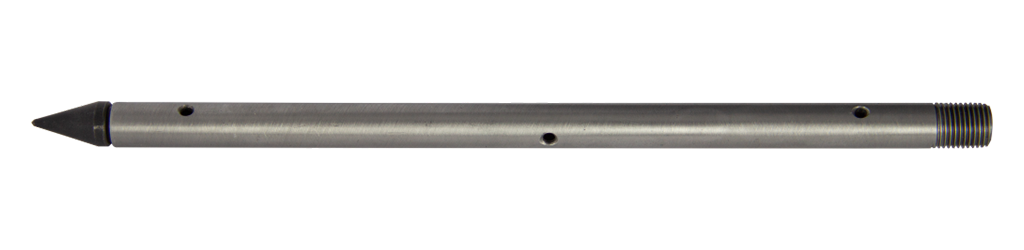

Basic ram lance dia 13 mm – 500 mm

Incl. Separated tip, lateral drill holes 8 x 3 mm, length 500 mm, 1x outside thread G 1/4” Item number: BM177-Ramm4008

Basic ram lance dia 13 mm – 1000 mm

Incl. Separated tip, lateral drill holes 8 x 3 mm, length 1000 mm, 1x outside thread G 1/4” Item number: BM177-Ramm4011

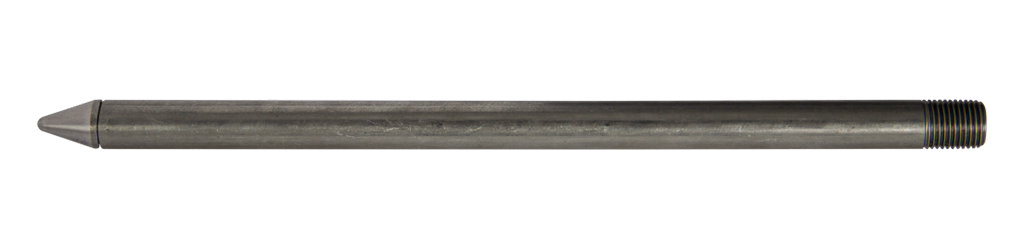

Basic ram lance dia 13 mm – 500 mm

Incl. Separated tip , without drill holes, length 500 mm, 1x outside thread G 1/4” Item number: BM177-Ramm4008

Basic ram lance dia 13 mm – 1000 mm

Incl. Separated tip, without drill holes, length 1000 mm, 1x outside thread G 1/4” Item number: BM177-Ramm4009

High pressure dowel packer D 12mm, 2 pieces

High-pressure dowel packer, dia 12 mm, made of plastic for applications up to 200 bar, with integrated cone head nipple (2-piece) Item number: PA-BM12-1

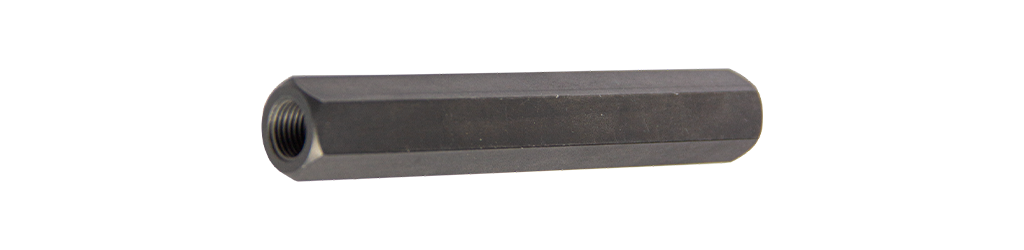

Precussion tool for ram lances

Dia 13 mm, 1x inside thread 1/4” Item number: BM177-Rammm4018

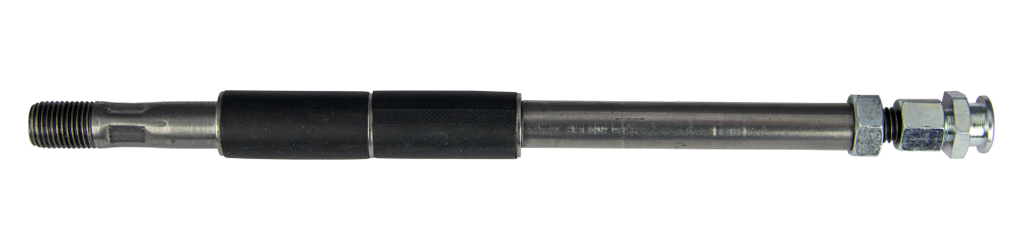

Injection packer for ram lance system D18 x 200 mm

Double rubber dia 18 mm, flat-head nipple, length 200 mm, 1x outside thread G 1/4” Item number: BM177-Ramm4015

Low-pressure ball tap for ram lance system

Ball tap 2x inside thread IG 1/4” *Image similar

Low-pressure ball tap for ram lance system

Mounting bayonet, outside thread AG 1/4” Item number: PA-BM18-3

Screw connector for Ram lances

for lance tubes D 13 mm (connection: 2 x IG 1/4″)

Extension piece for ram lance system dia 13 mm – 500 mm

Side drill holes 8 x 3 mm, length 500 mm, 2x external thread G 1/4” Item number: BM177-Ramm4013

Extension piece for ram lance system dia 13 mm – 1000 mm

Lateral drill holes 8 x 3 mm, length 1000 mm, 2x outside thread G 1/4” Item number: BM177-Ramm4009

Extension piece for ram lance system dia 13 mm – 500 mm

without drill holes, length 500 mm, 2x outside thread G 1/4” Item number: BM177-Ramm4012

Extension piece for ram lance system dia 13 mm – 1000 mm

without drill holes, length 1000 mm, 2x outside thread G 1/4” Item number: BM177-Ramm4007

Accessories for injection packers low pressure
